| Number | Type | Part No. | Specification |
| 1 | SLOTTED SET SCREWS PART THREAD | A4270206 | M2 X 6 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 2 | SLOTTED SET SCREWS PART THREAD | A4270208 | M2 X 8 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 3 | SLOTTED SET SCREWS PART THREAD | A4270306 | M3 X 6 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 4 | SLOTTED SET SCREWS PART THREAD | A4270308 | M3 X 8 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 5 | SLOTTED SET SCREWS PART THREAD | A4270310 | M3 X 10 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 6 | SLOTTED SET SCREWS PART THREAD | A4270312 | M3 X 12 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 7 | SLOTTED SET SCREWS PART THREAD | A4270316 | M3 X 16 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 8 | SLOTTED SET SCREWS PART THREAD | A4270320 | M3 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 9 | SLOTTED SET SCREWS PART THREAD | A4270408 | M4 X 8 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 10 | SLOTTED SET SCREWS PART THREAD | A4270410 | M4 X 10 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 11 | SLOTTED SET SCREWS PART THREAD | A4270412 | M4 X 12 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 12 | SLOTTED SET SCREWS PART THREAD | A4270416 | M4 X 16 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 13 | SLOTTED SET SCREWS PART THREAD | A4270420 | M4 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 14 | SLOTTED SET SCREWS PART THREAD | A4270425 | M4 X 25 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 15 | SLOTTED SET SCREWS PART THREAD | A4270430 | M4 X 30 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 16 | SLOTTED SET SCREWS PART THREAD | A4270435 | M4 X 35 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 17 | SLOTTED SET SCREWS PART THREAD | A4270440 | M4 X 40 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 18 | SLOTTED SET SCREWS PART THREAD | A4270508 | M5 X 8 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 19 | SLOTTED SET SCREWS PART THREAD | A4270510 | M5 X 10 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 20 | SLOTTED SET SCREWS PART THREAD | A4270512 | M5 X 12 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 21 | SLOTTED SET SCREWS PART THREAD | A4270516 | M5 X 16 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 22 | SLOTTED SET SCREWS PART THREAD | A4270518 | M5 X 18 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 23 | SLOTTED SET SCREWS PART THREAD | A4270520 | M5 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 24 | SLOTTED SET SCREWS PART THREAD | A4270525 | M5 X 25 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 25 | SLOTTED SET SCREWS PART THREAD | A4270530 | M5 X 30 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 26 | SLOTTED SET SCREWS PART THREAD | A4270535 | M5 X 35 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 27 | SLOTTED SET SCREWS PART THREAD | A4270540 | M5 X 40 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 28 | SLOTTED SET SCREWS PART THREAD | A4270610 | M6 X 10 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 29 | SLOTTED SET SCREWS PART THREAD | A4270612 | M6 X 12 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 30 | SLOTTED SET SCREWS PART THREAD | A4270616 | M6 X 16 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 31 | SLOTTED SET SCREWS PART THREAD | A4270620 | M6 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 32 | SLOTTED SET SCREWS PART THREAD | A4270625 | M6 X 25 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 33 | SLOTTED SET SCREWS PART THREAD | A4270630 | M6 X 30 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 34 | SLOTTED SET SCREWS PART THREAD | A4270635 | M6 X 35 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 35 | SLOTTED SET SCREWS PART THREAD | A4270640 | M6 X 40 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 36 | SLOTTED SET SCREWS PART THREAD | A4270816 | M8 X 16 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 37 | SLOTTED SET SCREWS PART THREAD | A4270818 | M8 X 18 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 38 | SLOTTED SET SCREWS PART THREAD | A4270820 | M8 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 39 | SLOTTED SET SCREWS PART THREAD | A4270825 | M8 X 25 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 40 | SLOTTED SET SCREWS PART THREAD | A4270830 | M8 X 30 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 41 | SLOTTED SET SCREWS PART THREAD | A4270835 | M8 X 35 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 42 | SLOTTED SET SCREWS PART THREAD | A4270840 | M8 X 40 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 43 | SLOTTED SET SCREWS PART THREAD | A4270845 | M8 X 45 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 44 | SLOTTED SET SCREWS PART THREAD | A4270850 | M8 X 50 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 45 | SLOTTED SET SCREWS PART THREAD | A4271020 | M10 X 20 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 46 | SLOTTED SET SCREWS PART THREAD | A4271025 | M10 X 25 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 47 | SLOTTED SET SCREWS PART THREAD | A4271030 | M10 X 30 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 48 | SLOTTED SET SCREWS PART THREAD | A4271035 | M10 X 35 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 49 | SLOTTED SET SCREWS PART THREAD | A4271040 | M10 X 40 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 50 | SLOTTED SET SCREWS PART THREAD | A4271045 | M10 X 45 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |
| 51 | SLOTTED SET SCREWS PART THREAD | A4271050 | M10 X 50 SLOTTED SET SCREW PART THREAD DIN 427 / ISO 2342 A1 STAINLESS STEEL |

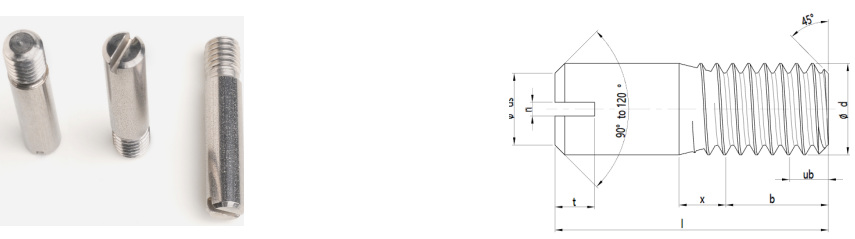

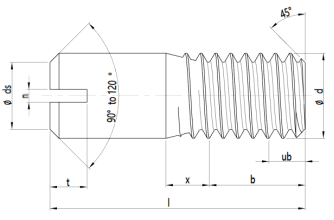

| Parameter | ||||
| Diameter (d) | Pitch | b | n (nom) | t (min) |
| M3 | 0.5 | 3.6 | 0.50 | 1.25 |
| M4 | 0.7 | 4.8 | 0.60 | 1.75 |
| M5 | 0.8 | 6 | 0.80 | 2 |
| M6 | 1 | 7.2 | 1 | 2.5 |
| M8 | 1.25 | 9.6 | 1.20 | 3.1 |
| M10 | 1.5 | 12 | 1.6 | 3.75 |
