| Number | Type | Part No. | Specification |

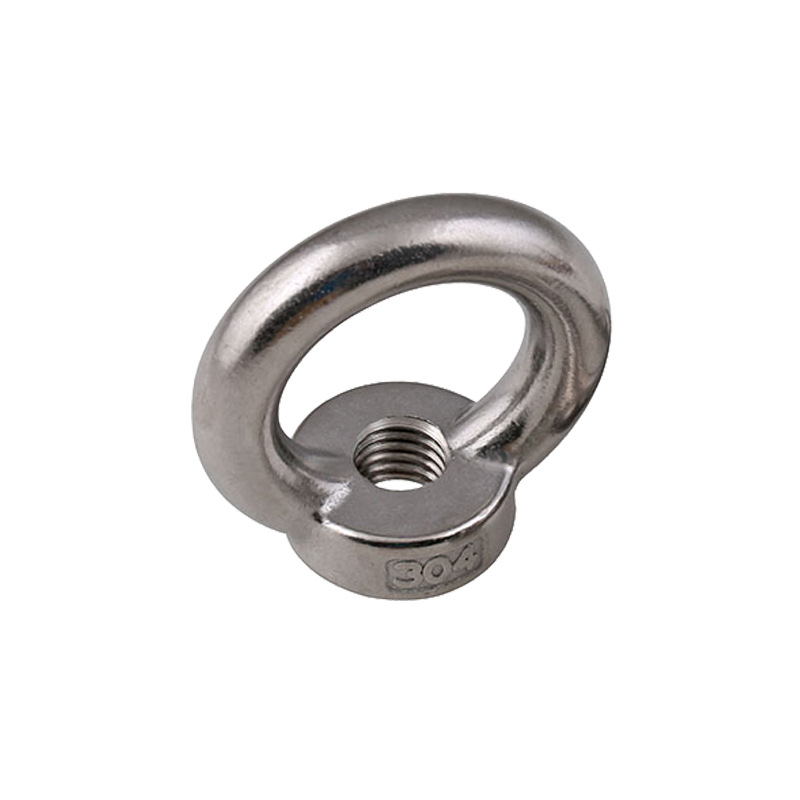

| 1 | LIFTING EYE NUTS FORGED DIN 582 | A58206F | M6 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 2 | LIFTING EYE NUTS FORGED DIN 582 | A58208F | M8 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 3 | LIFTING EYE NUTS FORGED DIN 582 | A58210F | M10 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 4 | LIFTING EYE NUTS FORGED DIN 582 | A58212F | M12 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 5 | LIFTING EYE NUTS FORGED DIN 582 | A58216F | M16 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 6 | LIFTING EYE NUTS FORGED DIN 582 | A58220F | M20 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 7 | LIFTING EYE NUTS FORGED DIN 582 | A58224F | M24 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 8 | LIFTING EYE NUTS FORGED DIN 582 | A58227F | M27 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 9 | LIFTING EYE NUTS FORGED DIN 582 | A58230F | M30 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| 10 | LIFTING EYE NUTS FORGED DIN 582 | A58236F | M36 LIFTING EYE NUT Sim.582 (CAST) A2 STAINLESS STEEL |
| Parameter | ||||||
| Diameter (d) | Pitch | d2 (nom) | d3 (nom) | d4 (nom) | h (nom) | e (nom) |
| M6 | 1 | 16 | 27 | 16 | 31 | 8 |
| M8 | 1.25 | 20 | 36 | 20 | 36 | 8.5 |
| M10 | 1.5 | 25 | 45 | 25 | 45 | 10 |
| M12 | 1.75 | 30 | 54 | 30 | 53 | 11 |
| M16 | 2 | 35 | 63 | 35 | 62 | 13 |
| M20 | 2.5 | 40 | 72 | 40 | 71 | 16 |
| M24 | 3 | 50 | 90 | 50 | 90 | 20 |
| M27 | 3 | 65 | 108 | 60 | 109 | 22 |
| M30 | 3.5 | 65 | 108 | 60 | 109 | 25 |
| M36 | 4 | 75 | 126 | 70 | 128 | 30 |
